3D printer APS W 2.0

3D printer APS W 2.0

The APS W 2.0 is a modular 3D printer that combines Fused Filament Fabrication (FFF) and Continuous Filament Fabrication (CFF) technologies, offering versatility in material usage and printing capabilities.

Its dynamic tool-changing system allows for the simultaneous use of up to four different materials, including standard thermoplastics like ABS and PLA, high-performance polymers such as PEEK and PEKK, continuous fibers like carbon and glass, and even metal and ceramic materials.

The APS W 2.0 features a build volume of up to 400*230*370 mm and supports high-temperature printing up to 500°C, making it suitable for functional prototypes, spare parts, and small-series production runs.

Engineered and assembled in Austria, the APS W 2.0 stands out for its adaptability and comprehensive material compatibility, catering to diverse industrial applications.

Key Features of the APS W 2.0

• Technologies - FFF and CFF
• Build Volume - Up to 400*230*370 mm
• Print Head Temperature - Up to 500 °C
• Material Compatibility - Standard and high-performance thermoplastics, continuous fibers (carbon, glass, aramid), metals, and ceramics
• Tool-Changing System - Supports up to four different print heads
• Cooling System - Water-cooled print heads for enhanced safety and repeatability

Composite 3D Printing Capabilities

• FFF with Chopped Carbon Fibers. Achieves carbon fiber densities between 10% and 30% with omnidirectional fiber placement

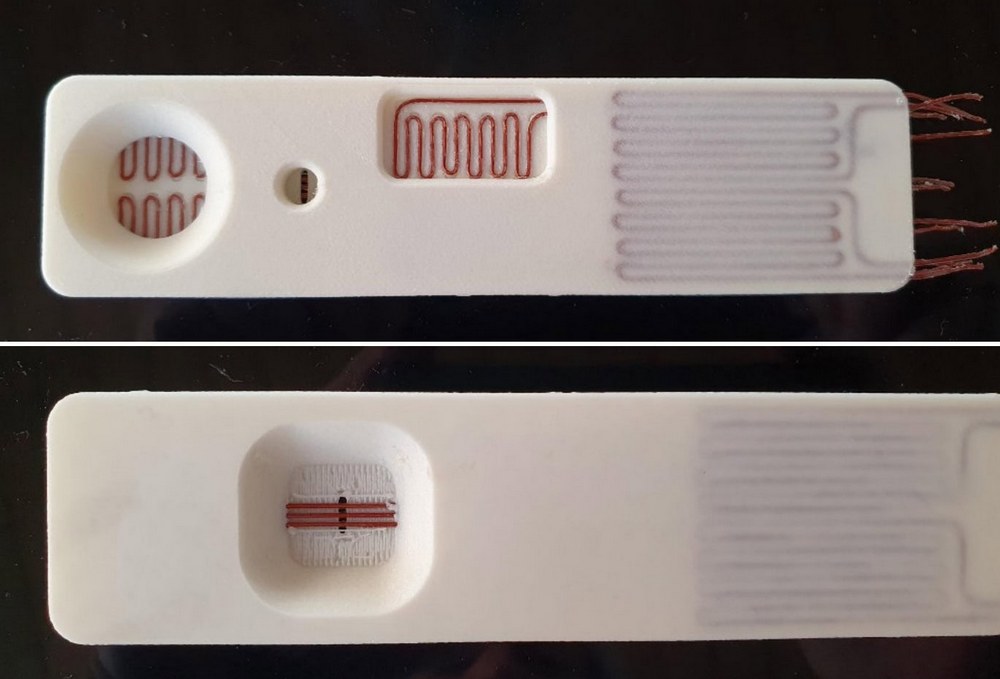

• CFF with Continuous Fibers. Allows for up to 50% fiber content with unidirectional placement; compatible with carbon fiber, glass fiber, aramid, and metal wires like copper

Open System and Customization

• Material Freedom. Open hardware and software architecture allows users to choose from a wide range of materials without restrictions
• Modular Upgrades. Optional modules such as laser functions, machining, assembly, and transportation can be integrated to tailor the printer to specific needs
• Embedded Components. Capability to integrate elements like RFID tags or sensors directly into 3D-printed parts, expanding functional possibilities

Applications

• Functional Prototypes. Rapid development and testing of design concepts
• Spare Parts Production. On-demand manufacturing of replacement components
• Small-Series Production. Efficient fabrication of limited-run products
• Composite Structures. Creation of lightweight, high-strength parts using continuous fiber reinforcement

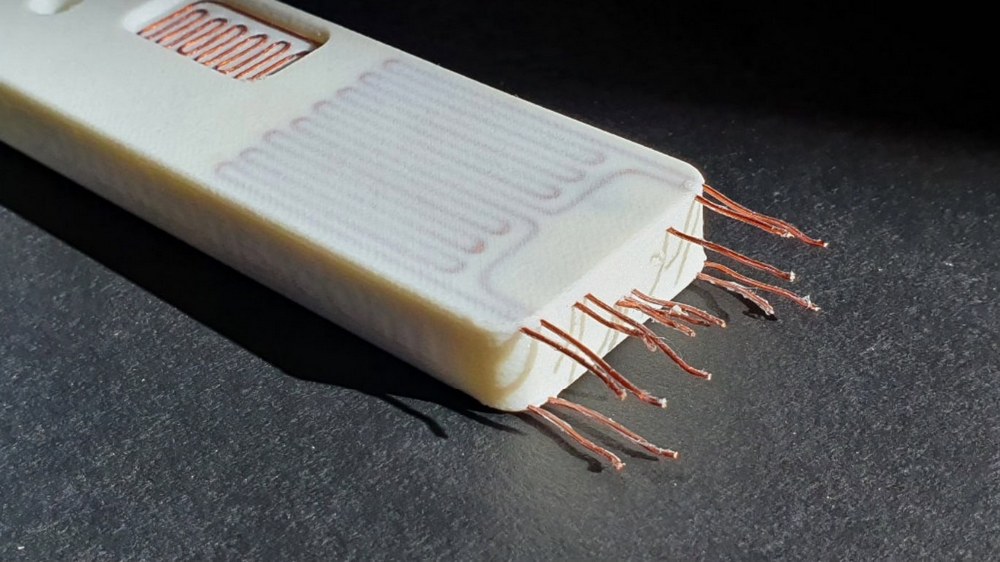

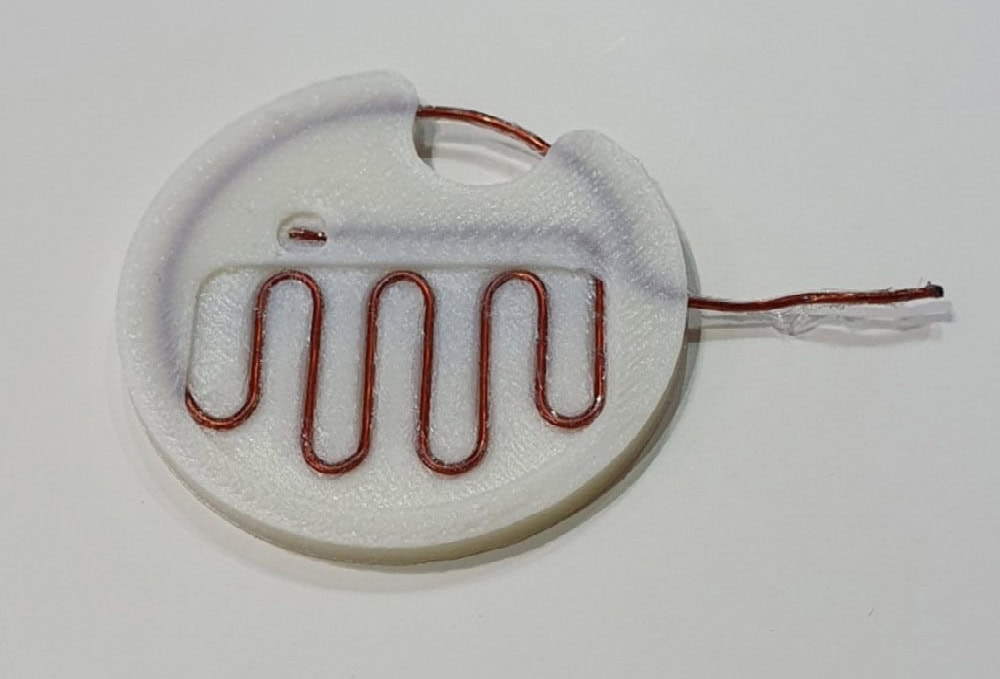

• Embedded Electronics. Integration of conductive materials like copper wires within printed parts for electronic applications

The APS W 2.0 sets a new standard in composite 3D printing, offering unparalleled flexibility and functionality for a wide range of industrial applications.

Specifications
